Available to back order. ETA will be 4 - 6 weeks.

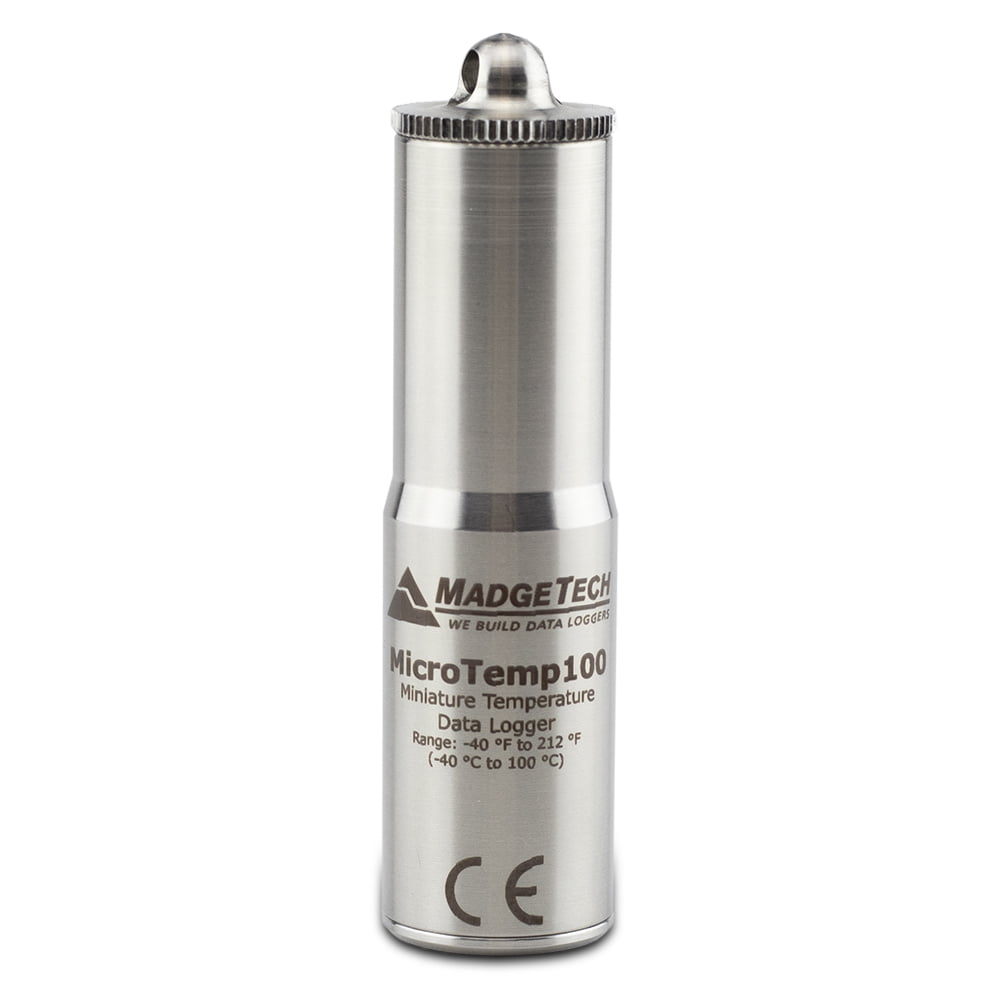

The MadgeTech MicroTemp100 is a mini temperature data logger built to withstand temperatures up to 100 °C (212 °F). Only 2.6 inches (66 mm) tall and 0.7 inches (18 mm) in diameter, this data logger can easily fit into the smallest spaces.
Don’t let its tiny size fool you, the MicroTemp100 measures and records temperatures ranging from –40 °C to +100 °C (-40 °F to +212 °F) and is submersible up to 230 feet (70 m). The MicroTemp100 has a storage capacity of 32,767 readings and is equipped with an LED alarm to warn when user-specified high/low temperature limits are breached.
The MicroTemp100 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units, including Pasteurization Units (PU).
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| LED Indicators | 1 status LED |
| Battery Life | 1 year typical |
| Material | 316 L food grade stainless steel |
| Dimensions | 2.6 in x 0.7 in dia. (66 mm x 18 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +100 °C (-40 °F to +212 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC202 |
| Approvals | CE |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +100 °C (-40 °F to +212 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C) ±1.0 °C (50.1 °C to 100 °C) ±2.0 °C (-40.0 °C to -0.1 °C) |
