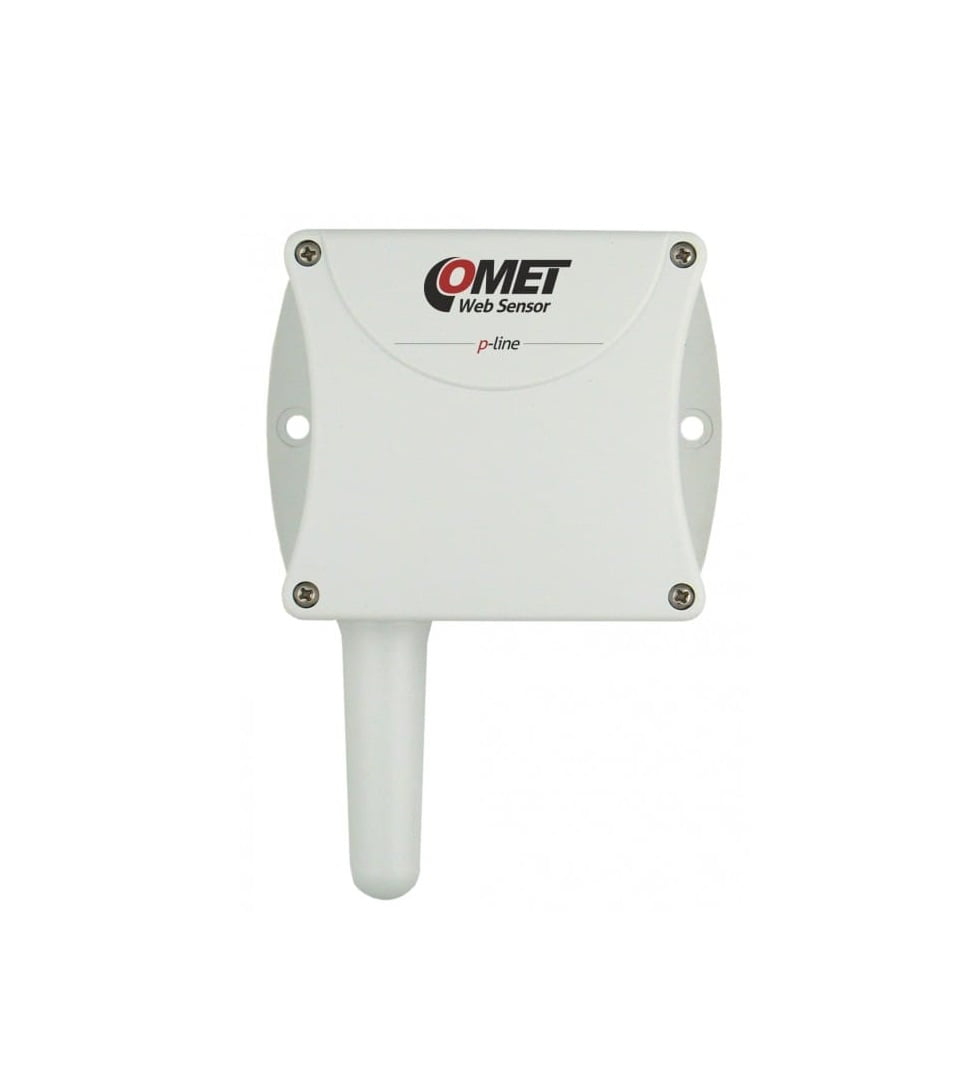

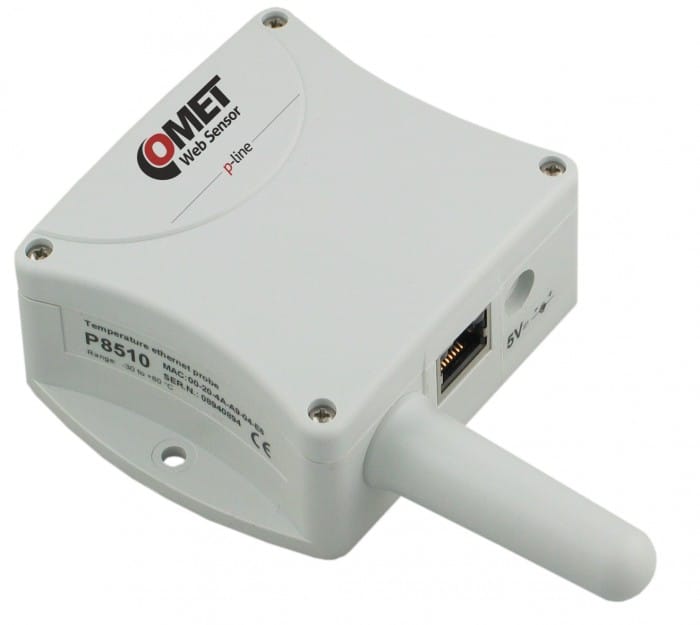

P8510 | Temperature Sensor with Ethernet interface

P-line Web Sensor with built-in temperature sensor. Remote alarm.

3 year warranty

Processing and analysis of measured data:

• online in COMET Cloud
• COMET Database software
• integration into 3-party systems

INCLUDED IN DELIVERY

• P8510
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

POWER SUPPLY IS NOT INCLUDED IN DELIVERY.

MEASURED VALUE
Temperature

TEMPERATURE SENSOR
Measuring range -30 to +80 °C
Accuracy ±0.8 °C in the range teplot od -10 °C do +80°C; ±2,0 °C in the range teplot od -10 °C do -30 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA
Operating temperature -30 to +80 °C
Channels internal temperature sensor
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 5 Vdc
Protection class IP30
Dimensions 88 x 126 x 39,5 mm; stem length 53 mm
Weight approx. 130 g
Warranty 3 years
