DPM-300 | Digital Panel Meter

Large Modbus level sensor display console

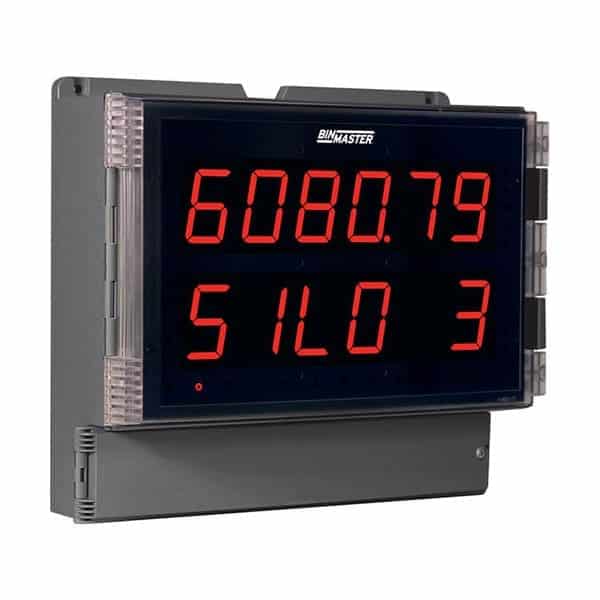

BinMaster’s DPM-300 Modbus digital panel meter monitors and displays levels on a super-large, super-luminous digital readout. It features a dual line, red LED display; both lines feature a 1.8" character height and 6 digits per line. The readout is visible through high dust, smoke, or fog and is sunlight readable up to 100 feet away. The display console is housed in a durable NEMA 4x, IP65 enclosure that can go the extra mile—even in the toughest manufacturing environments. Cement and mining operations love it!

It is compatible with BinMaster’s non-contact radar, guided wave radar, and ultrasonic sensors as well as Modbus sensors from other companies. Multi purpose and easy-to-use, the DPM-300 can function as a Modbus master, slave, or snooper. Additionally, this versatile device includes two independently programmable analog process input channels for a monitoring capability of up to 16 process variables—enabling the DPM-300 to display real-time data that makes it easy for plants to measure, monitor, and control inventory.

Digital Panel Meter Product Listing

Input/Output: Modbus RTU over RS-485
Display: Two lines with 1.8″ (46 mm) high digits, red LEDs; 6 digits per line (-99999 to 999999)
Display Intensity: Eight user selectable levels
Enclosure: NEMA 4X, IP65
Display Scan Rate: Master/Snooper: 1 PV/second to 1 PV every 99.9 seconds, Slave: Dependent on master device (e.g. PLC)
Display Update Rate: 5/second (200 ms) seconds. Slave: Dependent on master device (e.g. PLC)
Power Options: 85-265 VAC 50/60 Hz, 90-265 VDC, 20 W max or 12-24 VDC ± 10%, 15 W max.
Required External Fuse: UL Recognized, 5 A max, slow blow; up to 6 meters may share one 5 A fuse.
Operating Temperature: -40 to 65°C (-40 to 149°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)

• Programmable as a Modbus RTU master, slave, or snooper
• Large 1.80” digits in a dual-line 6-digt display
• Super luminous, sunlight-readable display visible in dust, fog, or smoke
• NEMA 4X, IP65 rated field mountable enclosure
• Accommodates up to 16 process variables in a variety of math functions
• Automatically scans at set intervals or scan manually
• Setup via free MeterView software, four front panel pushbuttons, or using the cloning function

• Operations that need a large display viewable from a long distance or in adverse conditions
• Mining, cement, and other industries where dust, fog, or smoke impede visibility
• Monitoring the level of solids, powders, or liquids stored in bins, tanks, or silos
• Operations that are managing a wide number of process variables
• Plants where multiple storage vessels must be continuously monitored
• Process operations where overfills and outages must be prevented
