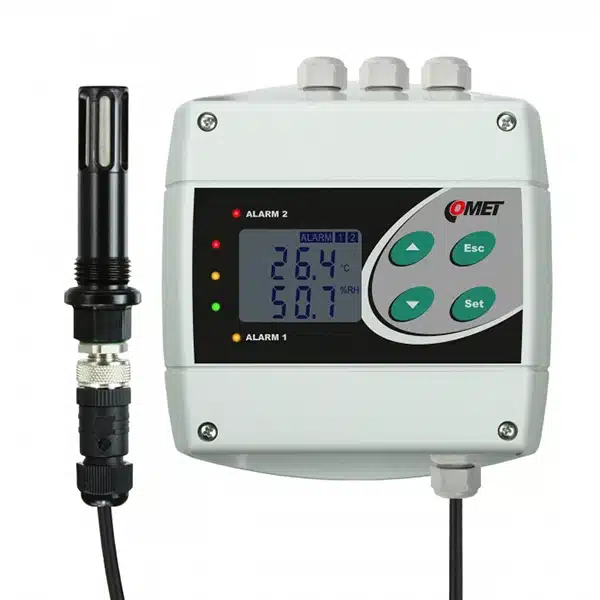

H3021P | Compressed Air T + RH Regulator

Humidistat, thermostat with two relay outputs. T+RH probe from hard anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 1 meter cable.

INCLUDED IN DELIVERY:

• H3021P
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

MEASURED VALUE
Temperature
Relative humidity

TEMPERATURE SENSOR
Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR
Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT
Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR
Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

RELAY OUTPUTS
Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA
Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm from built-in beeper – switchable
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
External probe cable length 1 meter
Weight approx. 400 g
Warranty 3 years
