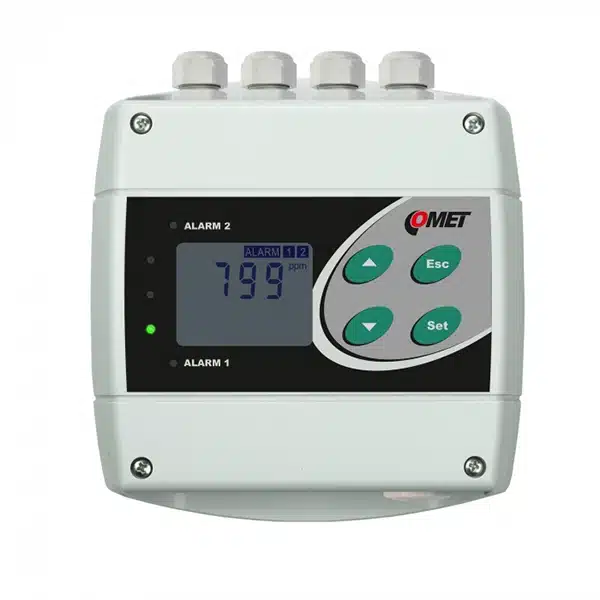

H5424 | RS485 & Relay outputs

CO2 level transmitter with two output relays.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more

INCLUDED IN DELIVERY:

• H5424
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

MEASURED VALUE
CO2

CO2 SENSOR
Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

RELAY OUTPUTS
Quantity 2
Maximal voltage 50 V
Maximal current 2 A
Maximal power 60 VA

GENERAL TECHNICAL DATA
Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Acoustic alarm from built-in beeper – switchable
Output RS485
Communication protocol ModBus RTU and Advantech ADAM compatible protocol
Power 9-30 Vdc
Protection class IP30
Dimensions 136 x 150 x 45 mm
Weight approx. 360 g
Warranty 3 years
