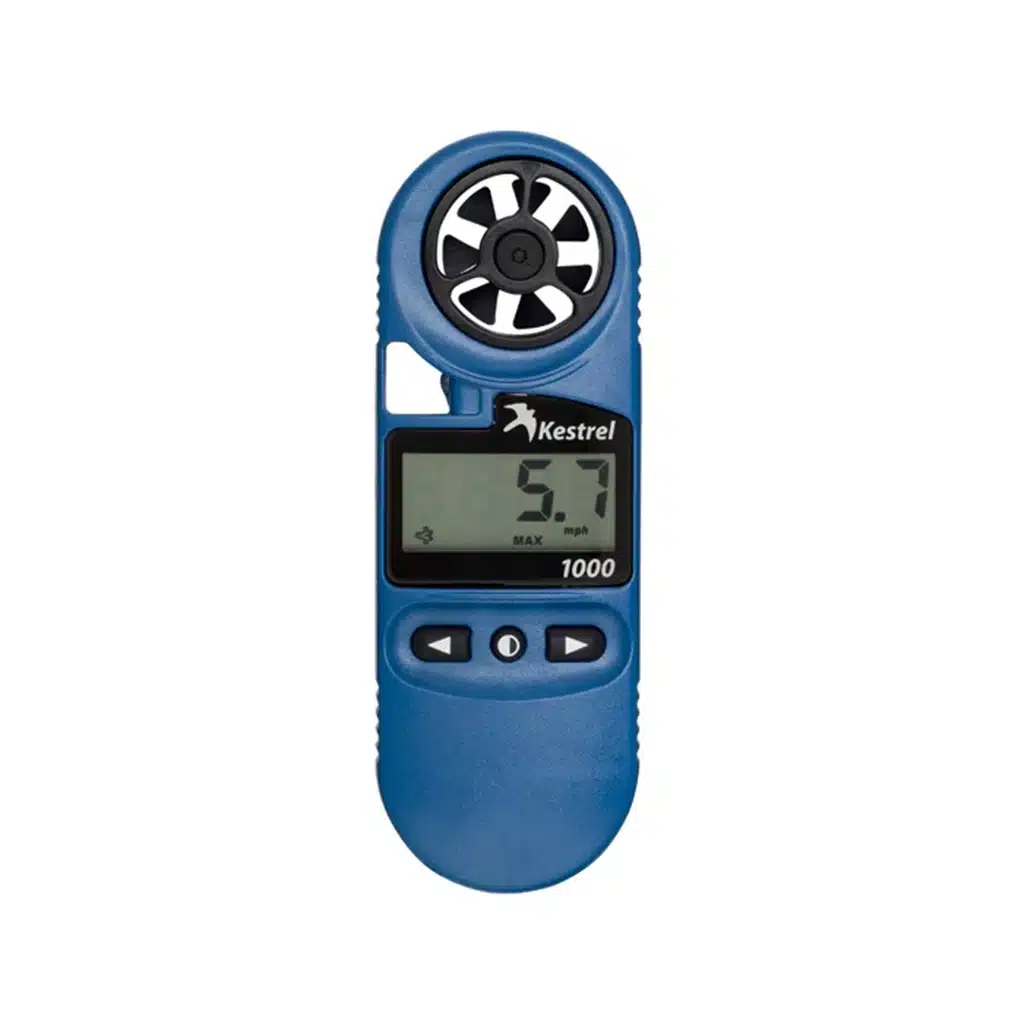

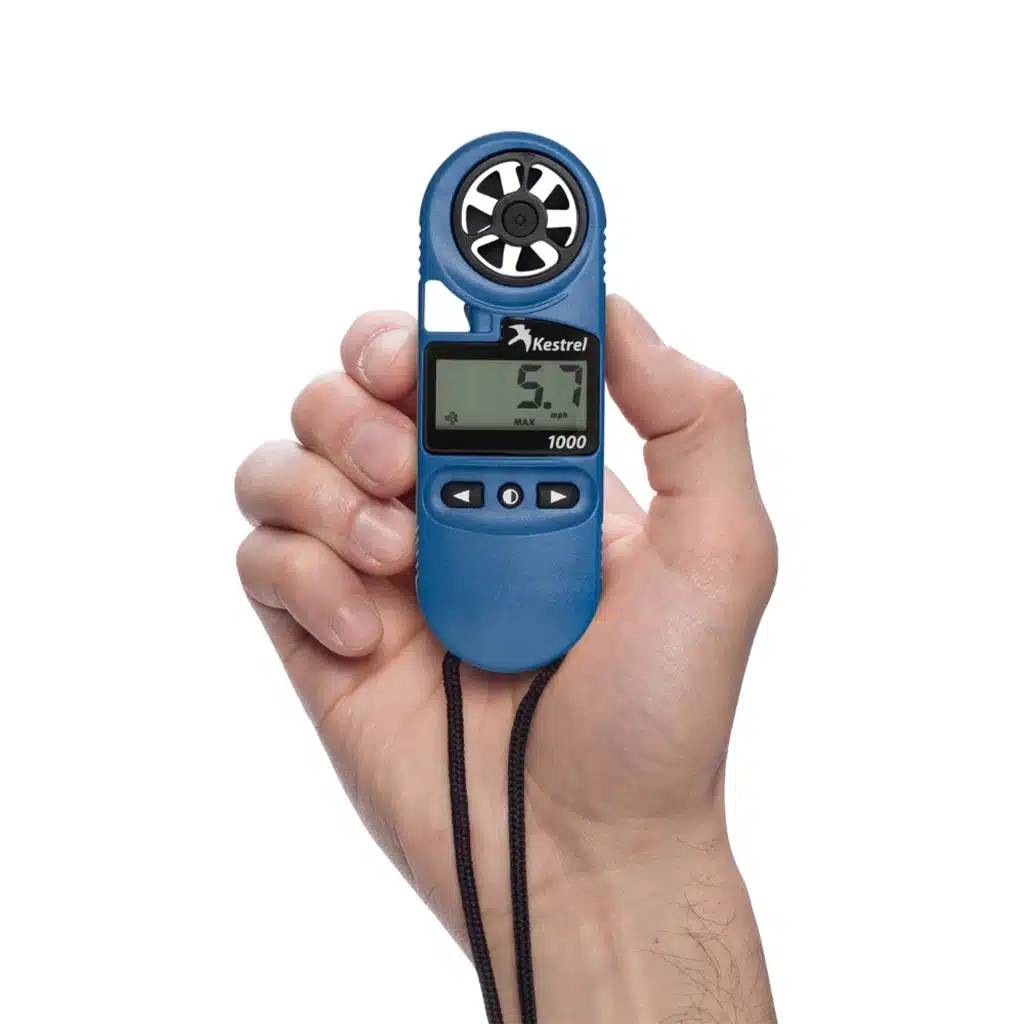

Kestrel 1000 | Wind Meter

Name: Kestrel 1000 | Wind Meter
Brand: Kestrel
SKU: PST-KT-1000
Price: 213.63 AUD
Availability: InStock

$ 213.63 Ex. GST

2 in stock (can be backordered)

Description

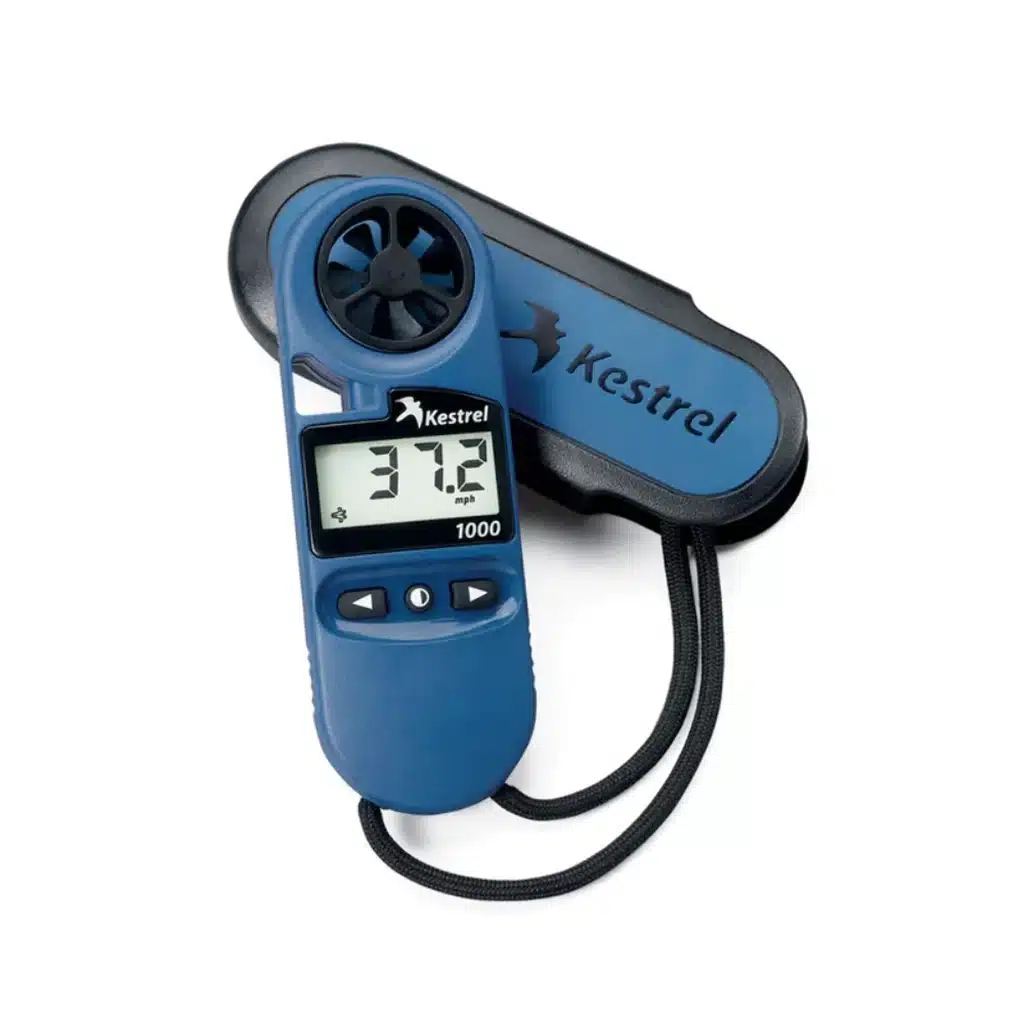

The Kestrel 1000 is our most basic meter. If all you require is wind measurements, this is our least expensive meter. Every meter we sell has the wind features of the Kestrel 1000. The hard slide-on case makes it durable to throw in your gear bag with no worries.

Measures:

Current Wind Speed
Maximum Wind Gust
Average Wind Speed

Applications: Athletics, Aviation, Operating Cranes, Construction & HVAC, Fishing, Sailing & Boating, Wind Load Monitoring, Wind Surfing

Specifications

SENSORS	ACCURACY (+/-)*	Resolution	Specification Range	Operational Range
Wind Speed \| Air Flow	Larger of 3% of reading, least significant digit or 20 ft/min	0.1 m/s	0.6 to 40.0 m/s	0.6 to 60.0 m/s
		1 ft/min	118 to 7,874 ft/min	118 to 11,811 ft/min
		0.1 km/h	2.2 to 144.0 km/h	2.2 to 216.0 km/h
		0.1 mph	1.3 to 89.5 mph	1.3 to 134.2 mph
		0.1 knots	1.2 to 77.8 knots	1.2 to 116.6 knots
		1 B*	0 to 12 B*	0 to 12 B*
		0.1 F/S*	2-131.2 F/S*	2-196.9 F/S*

Display & Backlight	Reflective 3 1/2 digit LCD. Digit height 0.36 in / 9 mm. Aviation green electroluminescent backlight. Manual activation with auto-off
Response Time & Display Update	All measurements except those based on relative humidity respond accurately within 1 second. Relative humidity and all measurements which include RH in their calculation may require as long as 1 minute to fully equilibrate to a large change in the measurement environment. Display updates every 1 second.
Max/Avg Wind	One-button clear and restart of Max Wind Gust and Average Wind measurement.
Clock / Calendar	Real-time hours:minutes clock.
Auto Shutdown	After 45 minutes of no key presses.
Certifications	CE certified, RoHS and WEEE compliant. Individually tested to NIST-traceable standards (written certificate of tests available at additional charge).
Origin	Designed and manufactured in the USA from US and imported components. Complies with Regional Value Content and Tariff Code Transformation requirements for NAFTA Preference Criterion B.
Battery Life	CR2032, one, included. Average life, 300 hours. Battery life reduced by backlight use in 2000 to 3500 models.
Shock Resistance	MIL-STD-810g, Transit Shock, Method 516.6 Procedure IV; unit only; impact may damage replaceable impeller.
Sealing	Waterproof (IP67 and NEMA-6).
Operational Temperature Limits	-10 °C to 55 °C Measurements may be taken beyond the limits of the operational temperature range of the display and batteries by maintaining the unit within the operational range and exposing it to the more extreme environment for the minimum time necessary to take reading.
Storage Temperature	-30.0 °C to 60.0 °C
Size & Weight	12.2 x 4.8 x 2.8 cm, 102 g (including slip-on cover)

* NOTE: Accuracy calculated as uncertainty of the measurement derived from statistical analysis considering the combined effects from primary sensor specifications, circuit conversions, and all other sources of error using a coverage factor of k=2, or two standard deviations (2Σ).

Impeller:

Every Kestrel Meter features a large, 1” impeller mounted on a sapphire jewel bearing, which means it starts rotating with the slightest puff of air – 0.48 km/h to be exact! This patented impeller is user-replaceable by simply pushing it out with your thumbs, which means it can easily be replaced if it is damaged or worn. The measurements from the wind impeller are taken magnetically. The impeller is not glued or attached to the unit. Because every new impeller is calibrated in the wind tunnel at the USA factory, if your application demands regular calibration, simply pop in a new impeller and the Kestrel Wind Meter is restored to like-new factory calibration standards. The Kestrel 1000 can easily be switched between mph, km/h, ft/min, m/s, knots and Beaufort.

Features
