1 in stock (can be backordered)

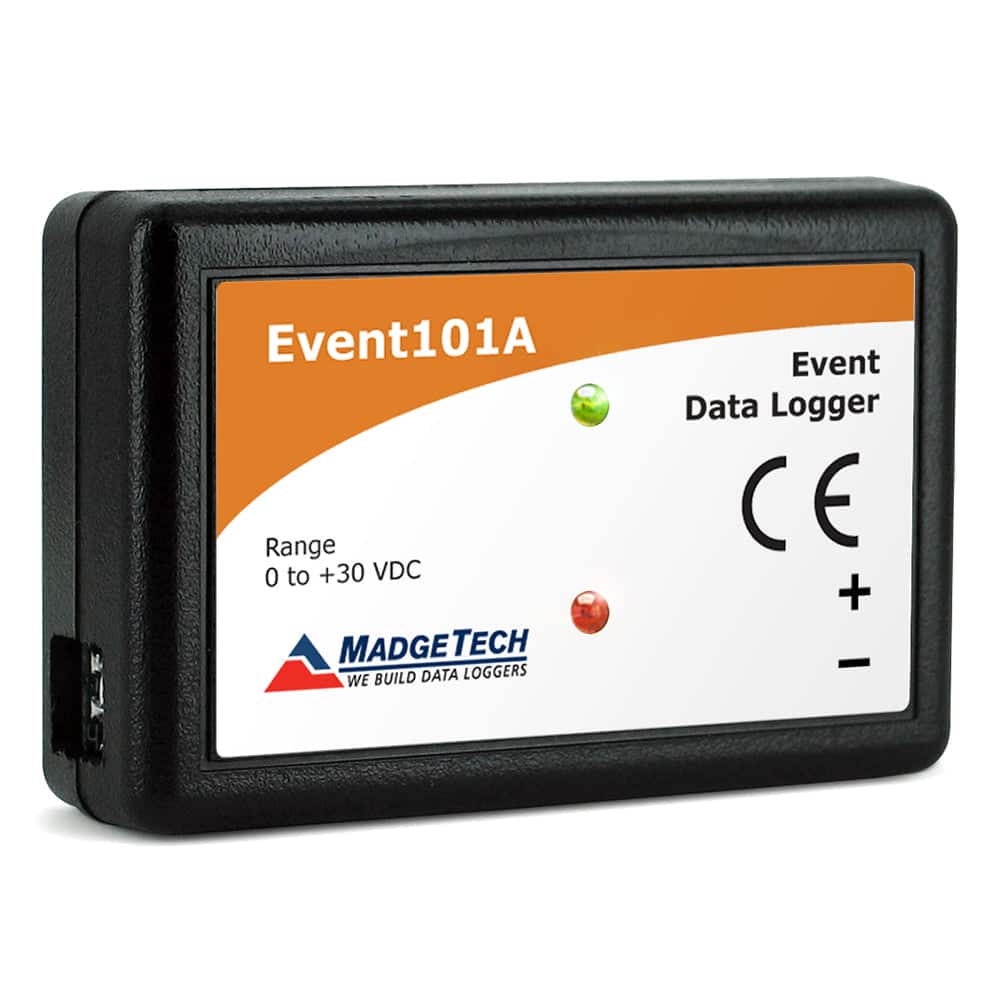

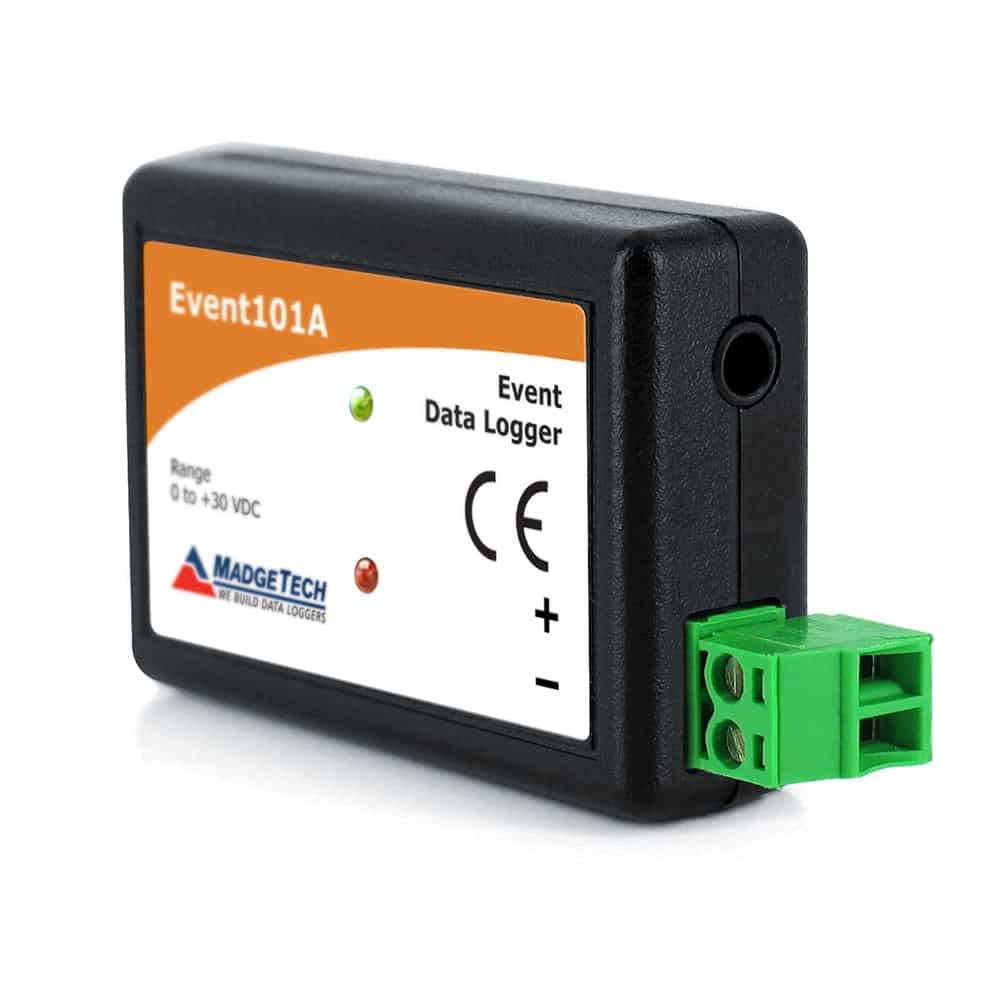

The MadgeTech Event101A is a compact data logger that monitors and records the occurrences of a specific event. With a 10-year battery life, the Event101A is ideal for long-term field studies that focus on the when a specific event happens and for how long.
This device offers an input range of up to 30 V with a storage capacity up to 825,753 readings. The Event101A can be configured to utilize the memory wrap option to extend deployment capability or programmed to start at a specified date and time up to 18 months in advance.
The Event101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 825,753 readings |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Input Range | 0 to 30 V |
| Input Low | <0.4 V |
| Input High | >2.8 V |
| Internal Weak Pull-up | <60 μA |
| Minimum Input Active (Low) | 10 Microseconds |
