2 in stock (can be backordered)
For remote temperature measurements, the LynxPro-RTD is your go-to solution. Equipped with a 48″ RTD (Resistance Temperature Detector) probe, it allows you to measure temperatures ranging from -100°C to +200°C accurately. Whether you need to monitor cryogenic environments, industrial processes, or research applications, the LynxPro-RTD ensures you capture critical temperature data with unmatched reliability.
LynxPro-RTD loggers come with exceptional features designed to streamline your data logging process. With a massive storage capacity of over 100,000 readings, you can confidently collect data for extended periods without the need for constant downloading. The loggers also feature programmable alarm threshold limits, enabling you to set alerts for temperature or humidity excursions.

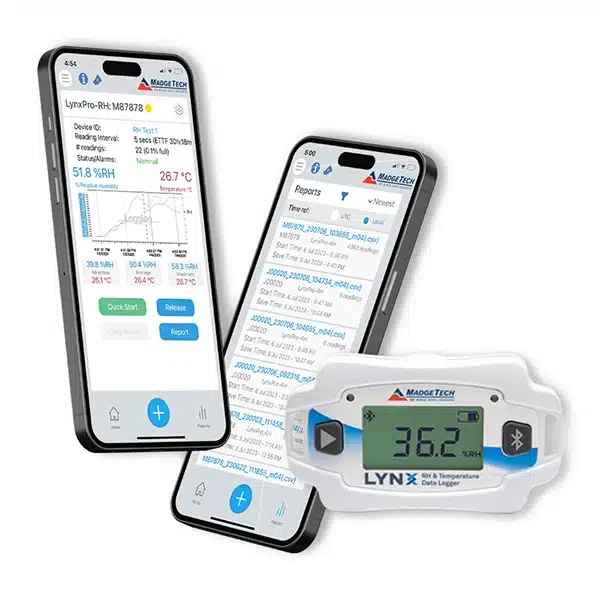

The LynxPro Series offers two convenient options for data collection and analysis. The first is the user-friendly MadgeTech App, which allows you to effortlessly collect data via Bluetooth connectivity. With a few taps on your smartphone or tablet, you can wirelessly retrieve readings, making data collection more efficient than ever.
For more advanced data analysis and reporting, the loggers are compatible with MadgeTech 4 software. This powerful software provides comprehensive data management, analysis, and customizable reporting options, empowering you to gain valuable insights and make informed decisions based on your data.
The LynxPro Series is built to meet the highest industry standards. These loggers are compliant with VFC DDL (Vaccine Monitoring Digital Data Logger) requirements, ensuring reliable and accurate temperature monitoring for pharmaceutical and healthcare applications. You can trust the LynxPro Series to meet your compliance needs and deliver accurate results consistently.
General
| Start Modes | Immediate Start Delay Start up to 18 Months Pushbutton |
| Stop Modes | Pushbutton Timed (Specific date and time) |
| Multiple Start/Stop Mode | Start and stop the device multiple times without having to download data or communicate with a PC |
| Real Time Recording | May be used with MadgeTech App to monitor and record data in real time |
| Memory | 131,071 total recordings 21,845 readings in multiple start/stop modes |
| Reading Rate | 1 reading every second Up to 1 reading every 24 hours |
| Alarm | Programmable high and low limits; alarm is activated when measurement reaches or exceeds set limits |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery Type | Use replacable CR2450 coin cell battery |
| Battery Life | 6-months typical at a 15 minute reading rate |
| Data Format | Date and time stamped °C, °F, or %RH |
| Time Accuracy | |
| Computer Interface | USB (interface cable required) |
| Operating System Compatibility | |
| Software Compatibility | |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing |
| Dimensions | 3.75 in x 2.12 in x 0.70 in (95 mm x 55 mm x 17 mm) |
| Weight | 1.8 oz (51 g) |
| Material | Polycarbonate |
| Approvals | CE |
LynxPro-RTD
| CHANNEL 1 | Remote Temperature |
| Measurement Range | -100 °C to +200 °C (-148 °F to +392 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Accuracy | -0.5 °C (±0.9 °F) |
