Available to back order. ETA will be 4 - 6 weeks.

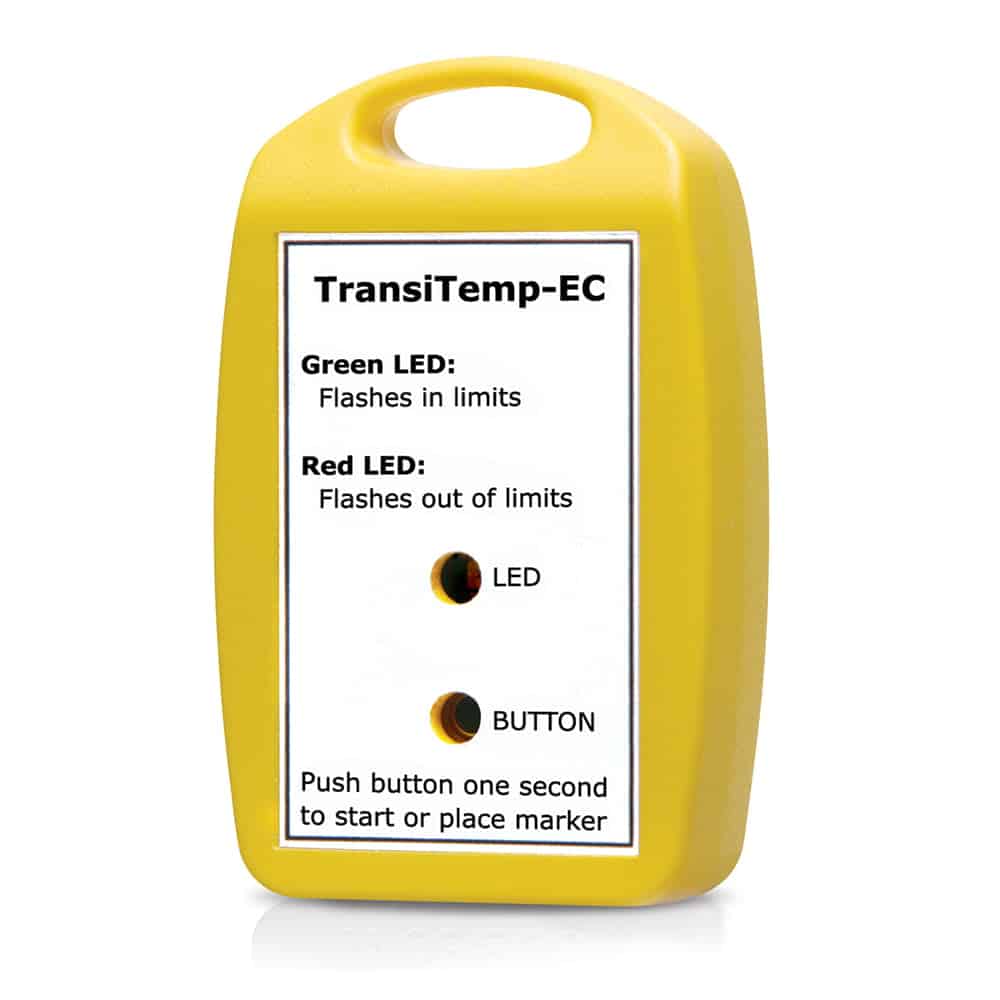

The TransiTemp-EC-Multi is a multi-use, temperature data logger. This compact device is designed for in-transit recording and features a convenient handle for easy attachment.
The TransiTemp-EC-Multi can measure temperatures from -20 ºC to +70 ºC (-4 °F to +158 °F) and record up to 8,191 readings. User-programmable, dual LEDs provide device status and alarm conditions for immediate validation. The TransiTemp-EC-Multi features a push-button start and can be configured to start up to 30 days in advance.
The TransiTemp-EC-Multi is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 8,191 readings |
| Reading Rate | 1 reading every 5 seconds up to 1 reading every 30 minutes |
| Alarm | Yes |
| Baud Rate | 38,400 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Single/Multi-Use | Single |
| Battery Life | 90 days |
| Material | ABS plastic |
| Dimensions | 1.7 in x 2.6 in x 0.6 in (44 mm x 67 mm x 16 mm) |
| Operating Environment | -20 °C to +70 °C (-4 °F to +158 °F), 0 %RH to 90 %RH non-condensing |
| Required Interface Package | IFC203 |
| Approvals | CE |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -20 °C to +70 °C (-4 °F to +158 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | ±5 °C (-10 °C to +40 °C) |
