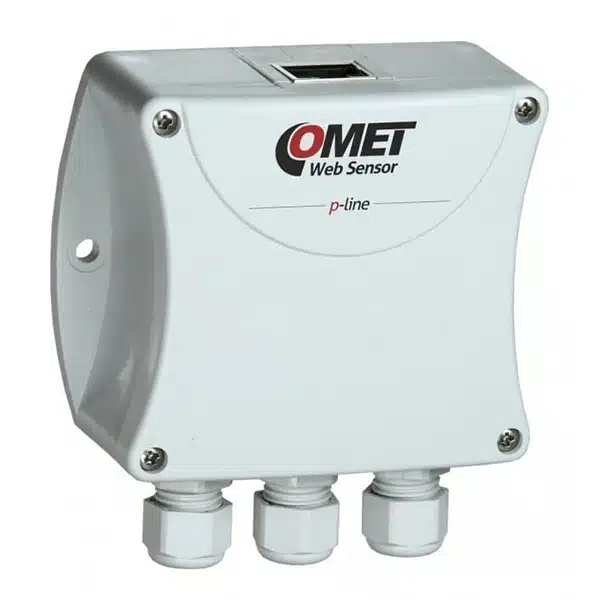

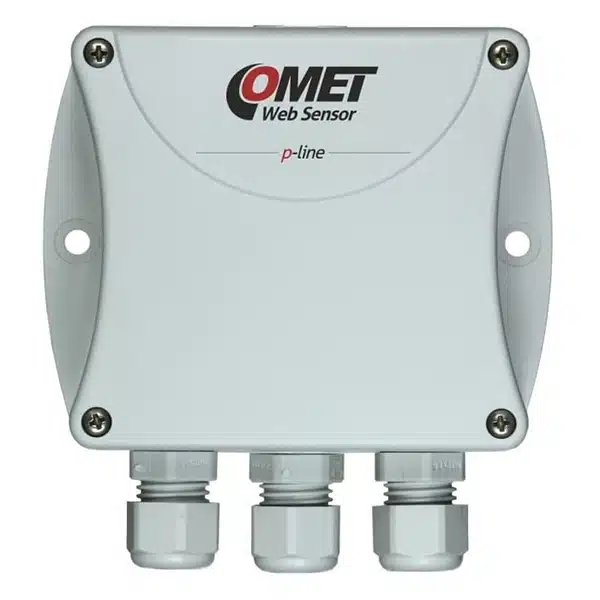

P2520 | Dual Channel Web Sensor

Dual channel p-line Web Sensor from 0-20mA (4-20mA) to Ethernet. Remote alarm.

• online in COMET Cloud
• COMET Database software
• integration into 3-party systems

3 year warranty

• P2520
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter
• COMET Cloud for 3 Months

MEASURED VALUE
Current

CURRENT INPUT
Accuracy current ±0.1% FS of 0 °C do +50 °C
±0.3% FS of -30 °C do +80 °C
Resolution 1 µA
A/D converter resolution 24bit sigma-delta
Input resistance 20 Ω
Measuring interval 1 s

GENERAL TECHNICAL DATA
Operating temperature -30 to +80 °C
Channels 2 x current input
Output Ethernet
Measuring interval 1 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88 x 126 x 39,5 mm
Weight approx. 150 g
Warranty 3 years
