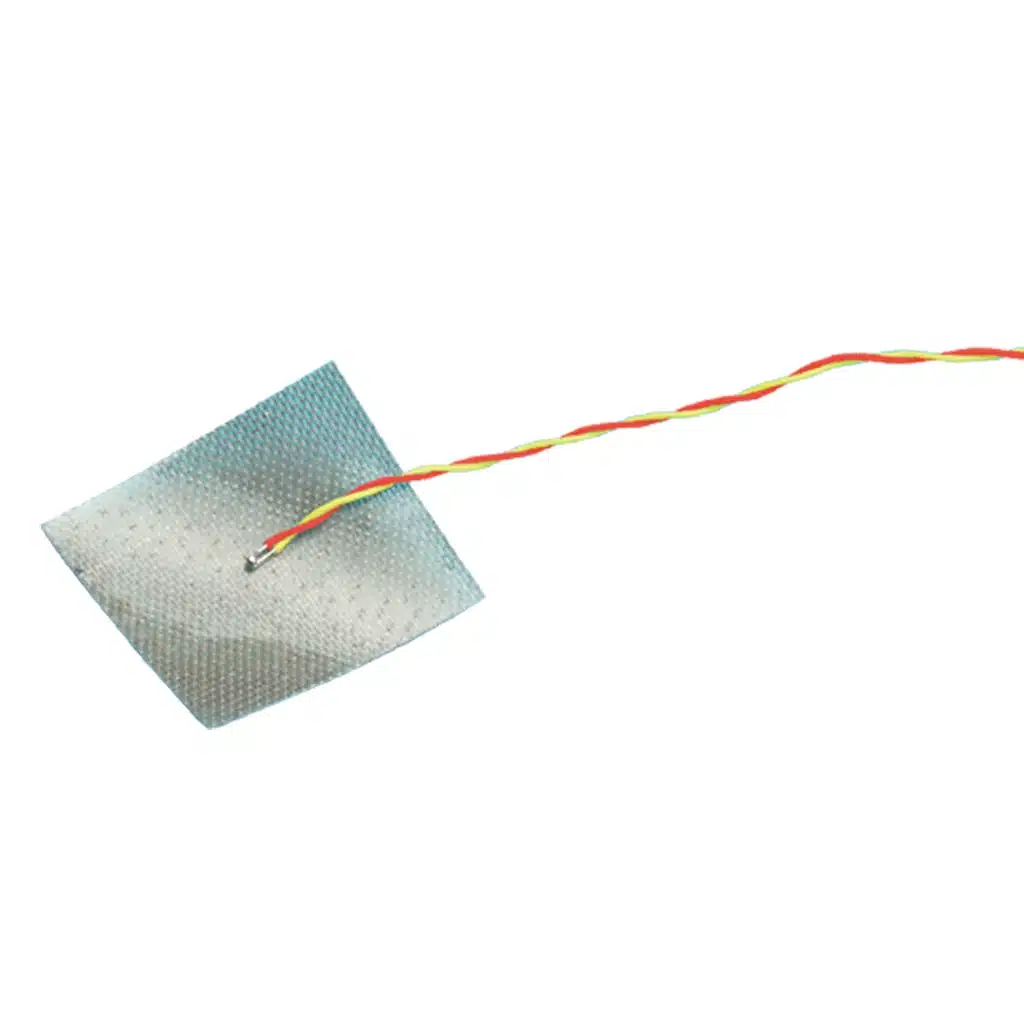

Self Adhesive Patch Thermocouple

Suitable for attaching to flat or curved surfaces, these Self Adhesive Patch Thermocouples are rated for operation between -50ºC and +250ºC. They are made from PFA insulated thermocouple cable which is attached to a high temperature rated patch of PTFE impregnated adhesive fibreglass tape.

• Thermocouple types K, T, J or N available
• Patch size is 25mm x 20mm
• 0.2mm dia solid PFA insulated twisted pair leads
• Lead length: 2 metres
• Operating range: -50ºC to +250ºC
