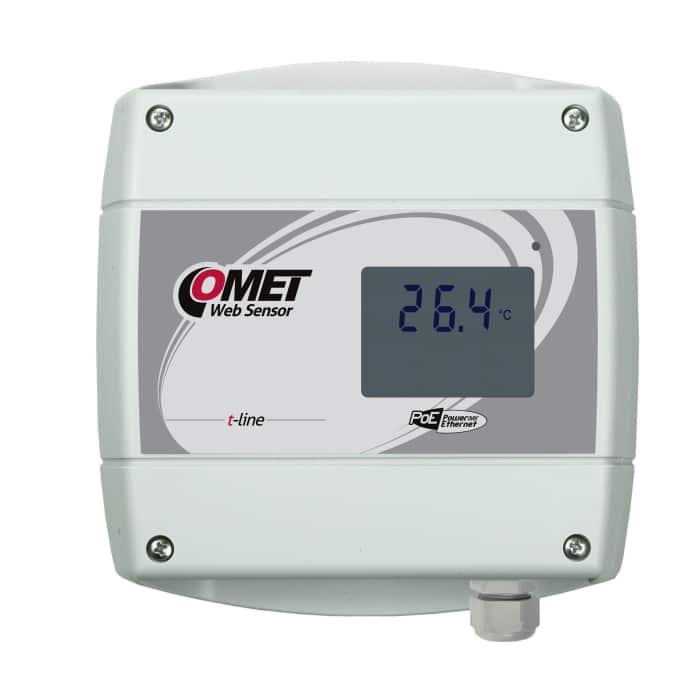

T4611 | Ambient Temperature Sensor with PoE

Ambient temperature t-line Web sensor for Pt1000 sensor with Power over Ethernet feature. Remote alarm.

PoE Web Sensor for external Pt1000 temperature probe. Power over Ethernet feature according IEEE 802.3af is supported.

Processing and analysis of measured data:

• online in COMET Cloud
• COMET Database software
• integration into 3-party systems

3 year warranty

INCLUDED IN DELIVERY:

• T4611
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter
• COMET Cloud for 3 Months

MEASURED VALUE
Temperature

TEMPERATURE SENSOR – EXTERNAL PROBE PT1000
Measuring range -200 to +600 °C
Accuracy ±0.2°C
Resolution 0.1 °C

GENERAL TECHNICAL DATA
Operating temperature -30 to +80 °C
Channels 1x external temperature probe
Output Ethernet
Measuring interval 2 s
Available temperature units degrees Celsius, degrees Fahrenheit
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class IP30
Dimensions 136 x 149 x 45 mm
Weight approx. 145 g
Warranty 3 years
