Available to back order. ETA will be 4 - 6 weeks.

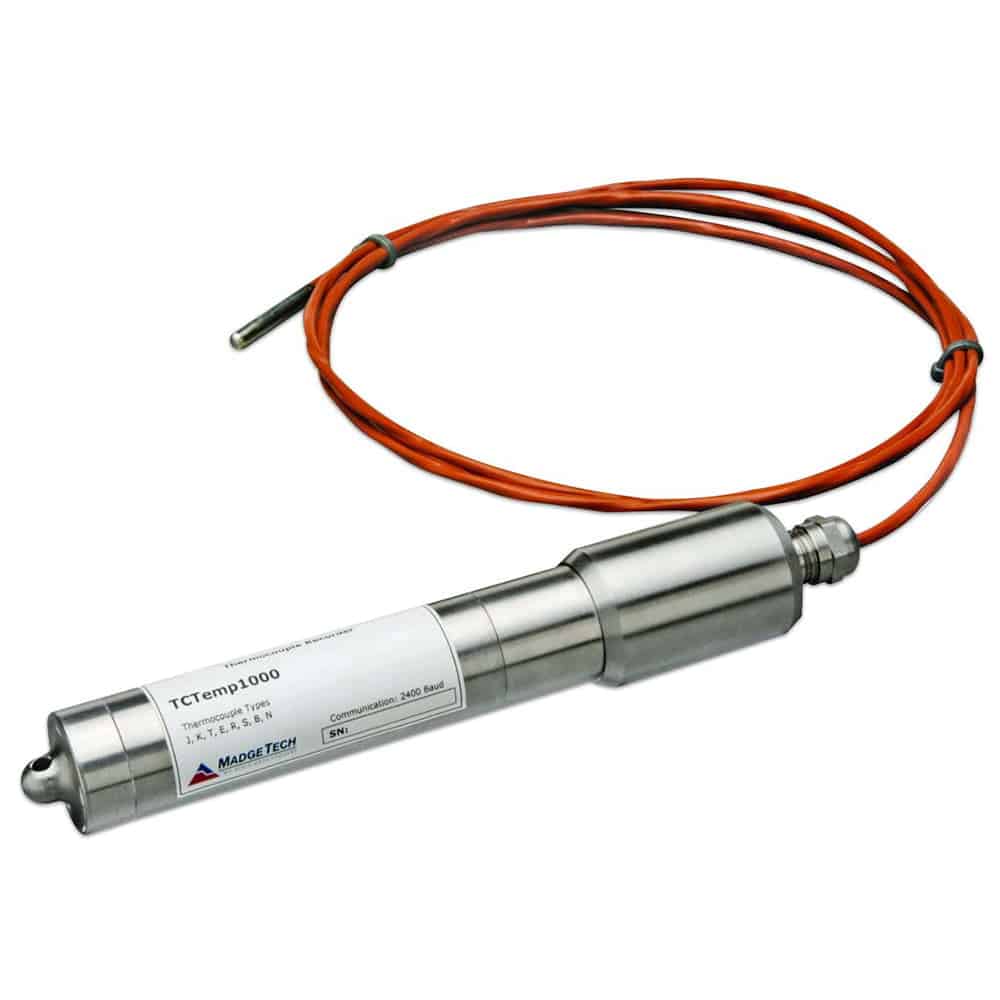

The TCTemp1000 is a submersible, thermocouple-based temperature data logger with stainless steel tipped 6 ft. Type K thermocouple. This device can be submerged up to 150 ft. and is adaptable to a variety of thermocouples.
The TCTemp1000 temperature probe data logger can measure and record up to 32,766 time and date stamped readings. Featuring individual cold junction compensation for each channel, the TCTemp1000 provides increased accuracy and response time.
The TCTemp1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
| Memory | 32,766 readings (all channels enabled) |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 12 hours |
| Baud Rate | 2,400 |
| Cold Junction Compensation | Automatic |
| Channels | 1 internal & 1 remote |
| Battery Life | 1 year |
| Material | 303 stainless steel |
| Dimensions | 7.4 in x 1.2 in dia (188 mm x 31 mm) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC110 or IFC200 |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
