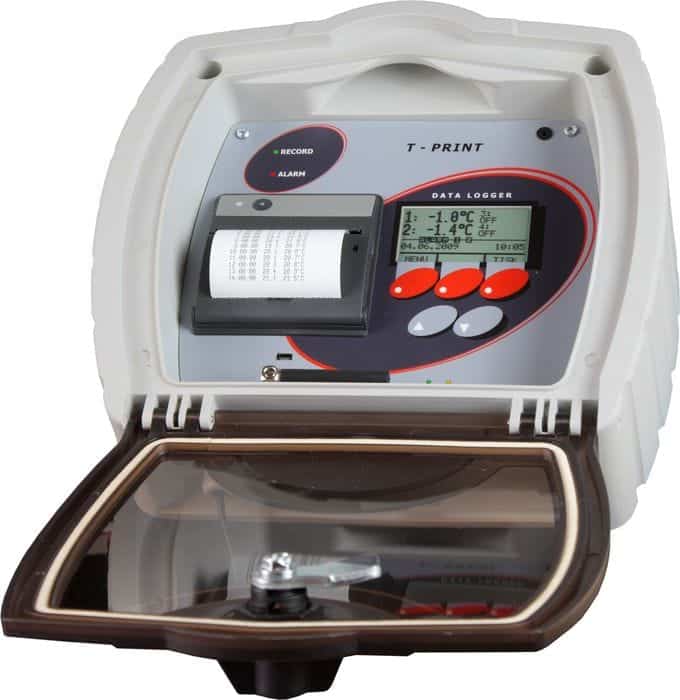

G0841 | Recorder with printer

Complete solution for temperature record during the transport. The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

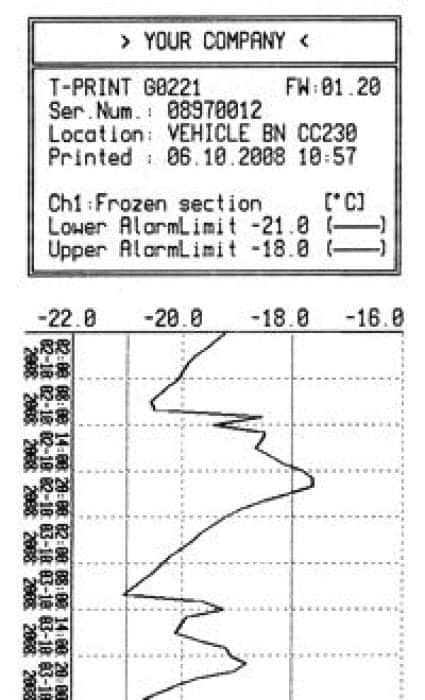

• print-out of temperature record during transport of food, pharmaceuticals, flowers, live animals and other goods
• designed specifically for external installation on semi-trailers
• easy installation

• G0841
• Instruction Manual
• Traceable Calibration Certificate

MEASURED VALUE
Temperature
Two-state signal

TEMPERATURE SENSOR – EXTERNAL PROBE PT1000
Measuring range -90 to +260 °C
Accuracy ±0.2 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA
Operating temperature -30 to +65 °C
Channels 2x external temperature probe, 2x binary input
Memory 1MB (approx. 170 000 hodnot)
Recording interval adjustable from 60 seconds to 60 minutes
Display and alarm refresh each 10 s
Recording mode cyclic – after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power 9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing/not printing approx. 8 W/approx. 0,1 W
Protection class IP65
Dimensions 250 x 242 x 110 mm
Weight approx. 1650 g
Warranty 3 years
