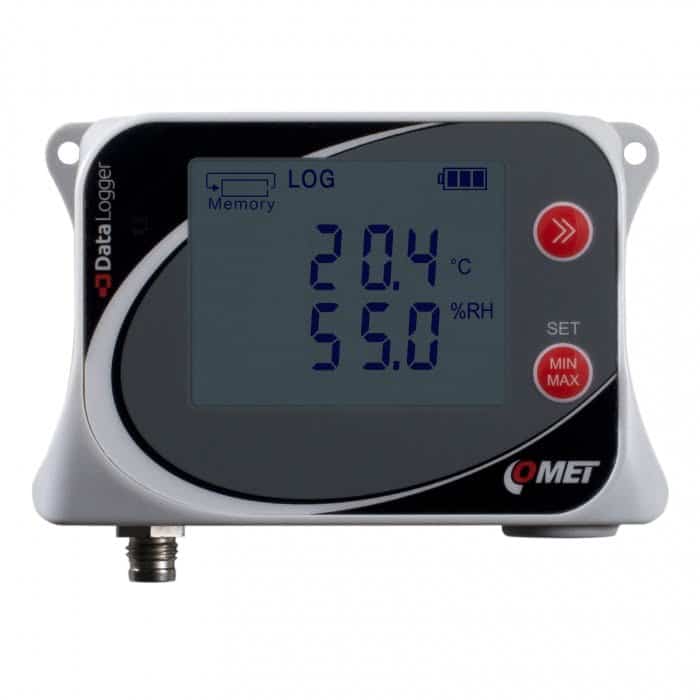

U3121 | Temperature Humidity Data Logger – External Probe

Data logger is designed to record temperature and humidity from external probe.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

Warranty: 3 years

• U3121
• Instruction Manual
• Traceable Calibration Certificate
• 1x Lithium battery 3.6 V
• FREE Analytical Software COMET Vision

MEASURED VALUE
Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1 °C
Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) 8 min

HUMIDITY SENSOR
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1% RH

DEW POINT
Measuring range according to the connected probe Digi/E
Accuracy according to the connected probe Digi/E
Resolution 0.1 °C

GENERAL TECHNICAL DATA
Operating temperature -20 to +60 °C
Channels 1x connectable temperature+humidity probe
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 1 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power Lithium battery 3.6 V, size AA
Protection class IP67
Dimensions 61 x 93 x 32 mm
Weight (including batteries) approx. 120 g
Warranty 3 years
