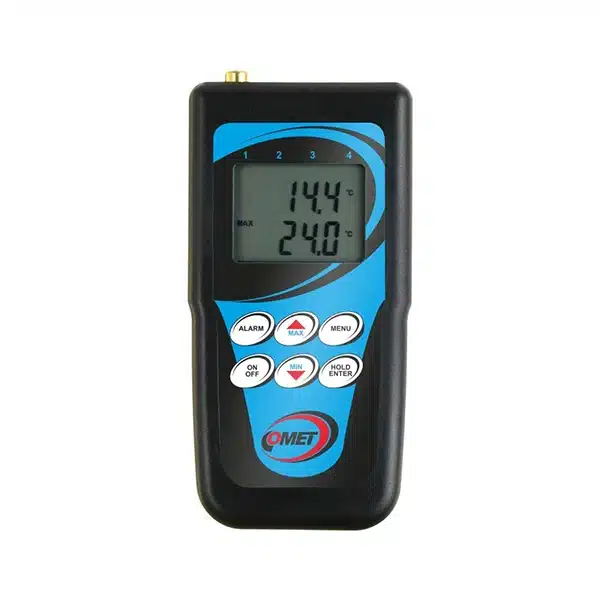

D0211 | Single Channel RTD Thermometer (Pt1000)

Thermometer is designed for direct measurement and data logging of temperature into the internal non-volatile memory.

Free PC program enables to transfer recorded data to the personal computer for consequent evaluation. LCD back-light.

Instrument is connected to the PC through included USB cable only for data transfer from the memory. During connection with the PC no measurement and record is enabled.

• D0211
• Instruction Manual
• Traceable Calibration Certificate
• Battery 9 V
• Mini USB Cable
• Plastic Transport Case
• FREE Analytical Software COMET Vision

MEASURED VALUE
Temperature

TEMPERATURE SENSOR – EXTERNAL PROBE PT1000
Measuring range -200 to +500 °C
Accuracy ±0.3 °C od -50 to +100 °C;
±0.3 % from reading from +100 to +500 °C;
±0.6 % from reading from -200 do -50 °C
Resolution 0.1 °C

GENERAL TECHNICAL DATA
Operating temperature -30 to +65 °C
Channels 1x external temperature probe
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 141 x 71 x 27 mm
Weight (including batteries) approx. 150 g
Warranty 3 years
