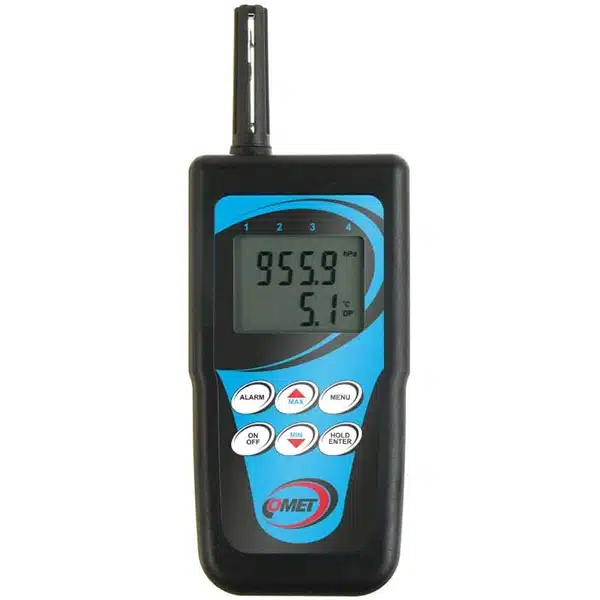

D4130 | Thermo Hygro Barometer

Thermometer, hygrometer, barometer is designed for measurement and datalogging of temperature, relative humidity and atmospheric pressure into the internal non-volatile memory.

Also barometric pressure tendency reading available. Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.

Audio and optical alarm of measured values.
Memory of minimum and maximum measured values.
Function Hold - manual storing of actual values for later displaying.

Data logger is connected to the PC through included USB cable only for data transfer from the memory. During connection with the PC no measurement and record is enabled.

Simultaneous reading of temperature and air relative humidity, dew point temperature and air pressure reading selectable, built-in sensors, barometric pressure tendency reading for last 3 hours.

3 year warranty

• D4130
• Instruction Manual
• Traceable Calibration Certificate
• Battery 9 V
• Mini USB Cable
• Plastic Transport Case
• Self Adhesive Dual Lock for Easy Installation
• FREE Analytical Software COMET Vision

MEASURED VALUE
Temperature
Relative humidity
Atmospheric pressure

TEMPERATURE SENSOR
Measuring range -10 to +60 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR
Measuring range 5 to 95 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT
Measuring range -40 to +60 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR
Measuring range 800 to 1100 hPa
Accuracy ±2hPa at 23°C
Resolution 0.1 hPa

GENERAL TECHNICAL DATA
Operating temperature -10 to +60 °C
Channels internal sensor of temperature, humidity sensor and atmospheric pressure
Acoustic signalization + backlit LCD YES
Memory 16,000 values (non-cyclic record)
Recording interval adjustable from 10 s to 24 h
Measuring interval and display reading refresh 0.7 to 5 s
Recording mode noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life approx. 6 months
Protection class IP20
Dimensions (without connectors) 191 x 71 x 27 mm
Weight (including batteries) approx. 155 g
Warranty 3 years
