T5541 | CO₂ Sensor with Ethernet interface

CO₂ - carbon dioxide t-line Web sensor. Remote alarm.

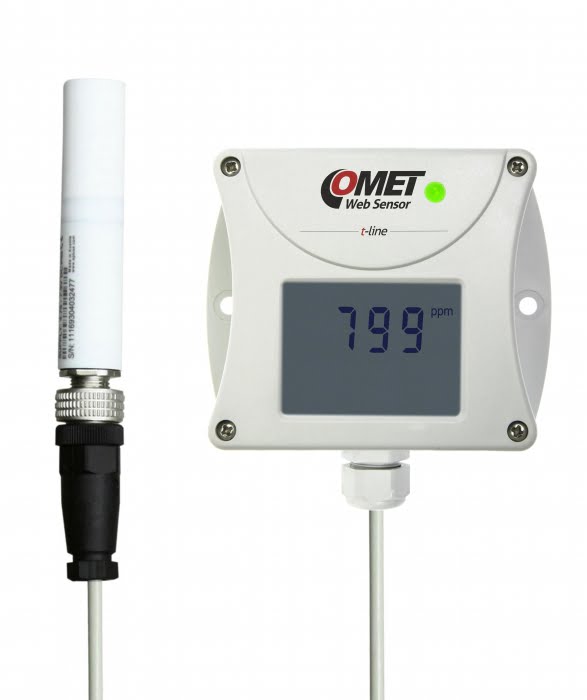

Web Sensor with CO₂ probe on the cable.

A multiple point CO₂ and temperature adjustment procedure leads to excellent CO₂ measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO₂ sensing procedure compensates automatically for ageing effects. The CO₂ module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The device is supplied with CO₂ probe with 1m cable. Cable lengths 2 or 4 meters available optionally.

Easy wireless communication using Web Sensor and optional  Wireless TP-LINK router.

Green LED shines - CO₂ concentration 0 to 1000 ppm
Yellow LED shines - CO₂ concentration 1001 to 1200 ppm
Red LED shines - CO₂ concentration 1201 ppm and more

• online in COMET Cloud
• COMET Database software
• integration into 3-party systems

• T5541
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

POWER SUPPLY IS NOT INCLUDED IN DELIVERY

3 year warranty

MEASURED VALUE
CO₂

CO₂ SENSOR
Measuring range 0 to 10 000 ppm
Accuracy ±(110ppm +5% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA
Operating temperature -30 to +80 °C
Channels 1x external CO₂ sensor
Output Ethernet
Measuring interval 15 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30 electronics; IP65 sensors
Dimensions 88,5 x 72,5 x 39,5 mm
External probe cable length CO2 1 meter (optionally 2 or 4 meters)
Weight approx. 240 g
Warranty 3 years
