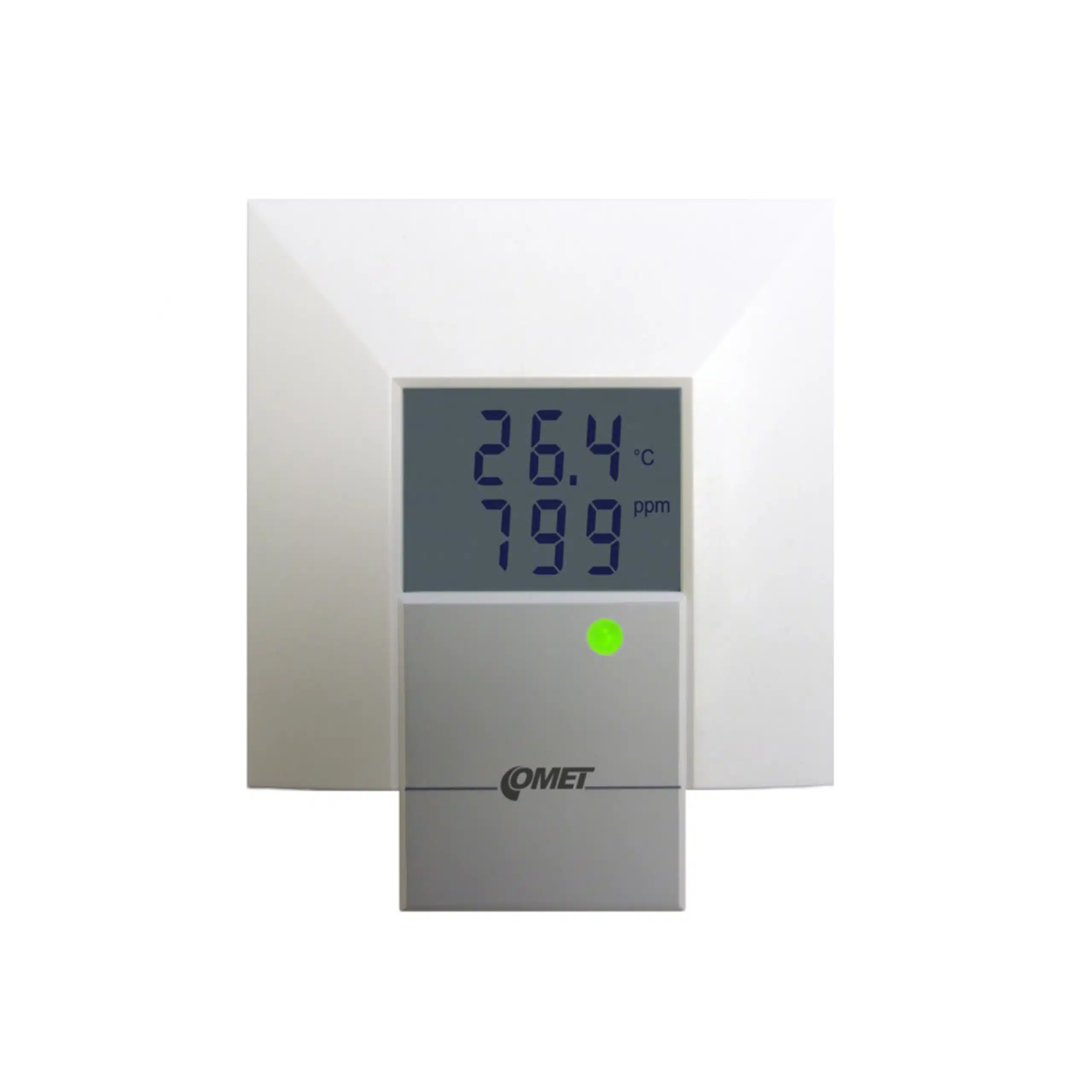

T8148 | 4-20mA CO₂ Temperature sensor

$ 897.22 Ex. GST

Available to back order. ETA will be 3 - 5 weeks.

Description

CO₂ - carbon dioxide level and temperature sensor.

Carbon dioxide CO₂ concentration and temperature transmitter with two 4-20mA outputs is specially designed for use in exacting interiors in building energy management and HVAC systems. It designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.
Large dual line LCD is possible to switch off.
Computerized design ensures long term stability and fail indication. Transmitter is designed for use in non-aggressive environment.

Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more

3 year warranty

Specifications

Technical data

Measured value

Temperature

CO2

TEMPERATURE SENSOR

Measuring range -10 to +50 °C

Accuracy ±0.5 °C

Resolution 0.1 °C

CO₂ SENSOR

Measuring range 0 to 2000 ppm

Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa

Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -10 to +50 °C

Channels internal temperature sensor a CO₂

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output 4-20 mA

Available temperature units degrees Celsius, degrees Fahrenheit

Configuration of output user adjustable from PC; measured range + value

Power 9-30 Vdc

Protection class IP20

Dimensions 88 x 106 x 33 mm

Weight approx. 150 g

Warranty 3 years
