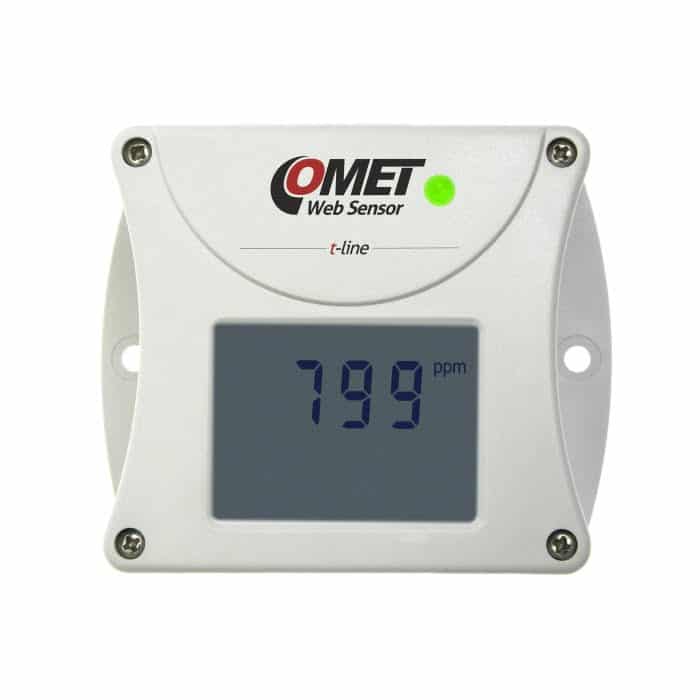

T5540 | CO₂ Web Sensor

CO₂ - carbon dioxide t-line Web sensor. Remote alarm.

Web Sensor with built-in concentration CO₂ sensor.

A multiple point CO₂ and temperature adjustment procedure leads to excellent CO₂ measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO₂ sensing procedure compensates automatically for ageing effects. The CO₂ module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

Green LED shines - CO₂ concentration 0 to 1000 ppm
Yellow LED shines - CO₂ concentration 1001 to 1200 ppm
Red LED shines - CO₂ concentration 1201 ppm and more

• online in COMET Cloud
• COMET Database software
• integration into 3-party systems

3 year warranty

• T5540
• Instruction Manual
• Traceable Calibration Certificate
• FREE software TSensor for Configuring of the Transmitter

MEASURED VALUE
CO₂

CO₂ SENSOR
Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA
Operating temperature -30 to +60 °C
Channels internal CO₂ sensor
Output Ethernet
Measuring interval 15 s
Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 72,5 x 39,5 mm
Weight approx. 140 g
Warranty 3 years
